Wiring Diagram Page
Original Sunday Morning Motors wiring diagrams are free to download and use!
Unique and easy to read. Each circuit on separate pages. Try them now and enjoy!
Each diagram is created to make diagnosing or understanding your mopeds wiring much more comprehensive through the use of:
- Curved and non-symetrical lines. This allows your eyes to follow the wires much easier.
- Full color diagrams
- Layered circuits so you can look at just what you are trying to understand
- Helpful notes
- Designed for complete novices to seasoned professionals
Please feel free to link them to your website as long as you are not attempting to profit from their use. Because I update discrepancies or changes without notice, please link them and not download them for access and redistribution. If you found any of these wiring diagrams beneficial to you or if you have certain diagrams that you would like done, please contact me and let me know so I can try to add them. Thank You!
Sunday Morning Motors Wiring Diagrams

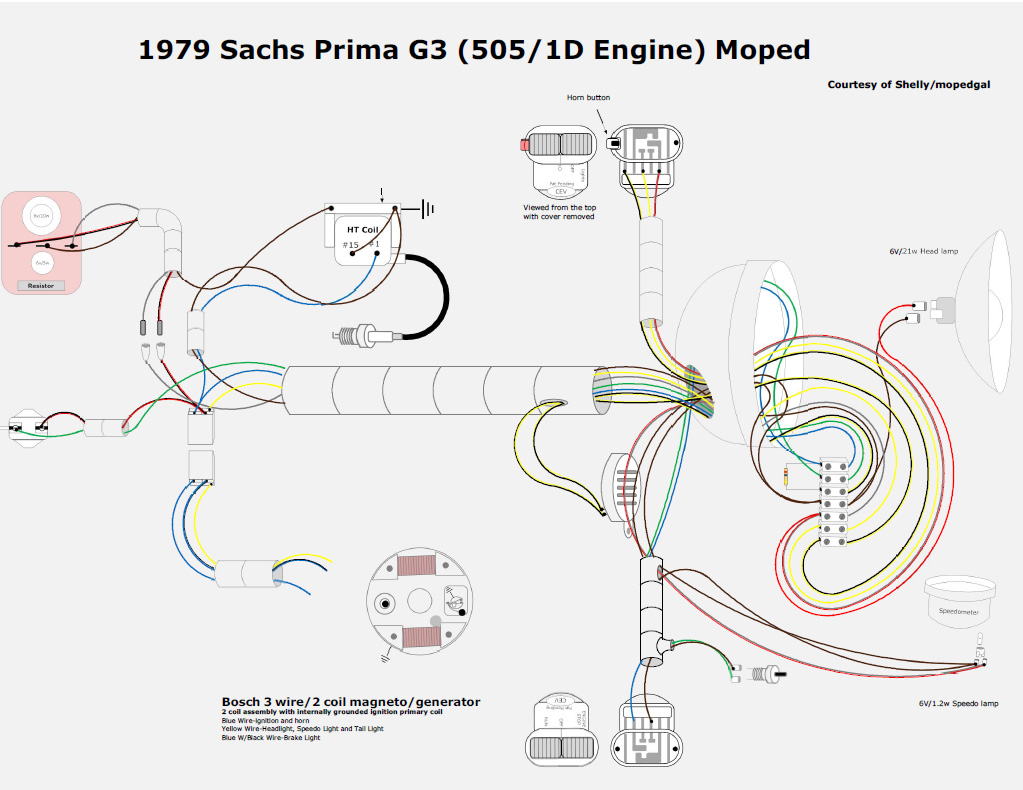

- 1979 Sachs G3 Prima (Sachs 505-1D Engine) wiring diagram
- 1977 Pacer P-14 (M01 Morini Franco Engine) wiring diagram
- 1976 Puch Maxi (E50 Engine/5 wire Bosch Magneto) wiring diagram
- 1977 Puch Maxi (E50 Engine/6 Wire Bosch Magneto) wiring diagram
- 1978 Puch Magnum XK (E50 Engine) wiring diagram
- 1977 Columbia Commuter (Sachs 505-1A Engine) wiring diagram
- 1985 Garelli Monza GT (VIP 1 Speed Engine) wiring diagram
- 1978 Batavus Starflite (Laura M48) Wiring Diagram
- 1978 Sachs Westlake (504-1C Engine) Wiring Diagram *****NEWEST UPLOAD****
Puch Horn circuit diagrams and a explanation of how they work
